Non-Programmable and Seven-Day-Programmable Fan Coil Thermostats

T701DFN-4 and T701DFP-4

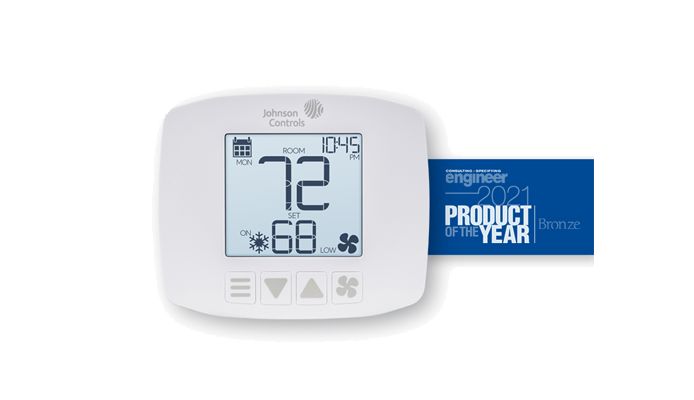

A thermostat from the FCP Series, with a blue 'Product of the Year' banner beside it

Non-Programmable and Seven-Day-Programmable Fan Coil Thermostats

T701DFN-4 and T701DFP-4

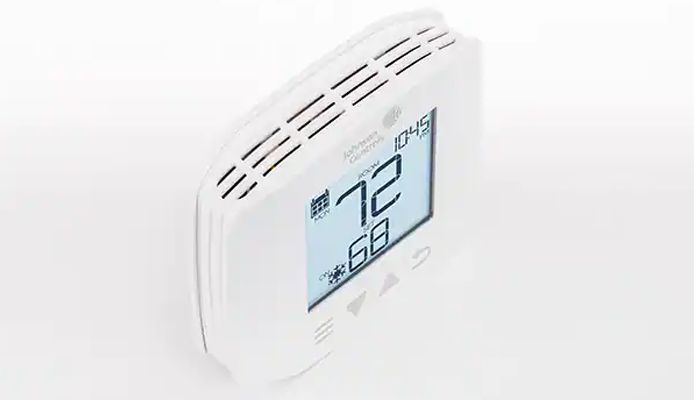

A three-quarters view of an FCP Series thermostat
Previous Next

Non Programmable Non Connected Fan Coil or PTAC Thermostats

Contact Us

Product Overview

The T701DFN-4 Non-Programmable and T701DFP-4 Seven Day Programmable Fan Coil Thermostats provide simple-to-use control of two- or four-pipe fan coil units. These fan coil thermostats provide on and off control, three speeds of fan control, and dry contact unoccupied control. The thermostats are designed as stand-alone devices for use in commercial buildings, such as schools and hotels, and provide the user access to parameters such as system mode, fan mode, and temperature setpoints


Non-Programmable and Seven-Day-Programmable Fan Coil Thermostats

T701DFN-4 and T701DFP-4

Features

  • Controls Most Fan Coil Unit Systems—Providing efficient asset management and flexibility.
  • Non-Programmable (T701DFN-4) and Seven Day Programmable (T701DFP-4) Versions—Make operation as simple as you want it to be.
  • Up to Three Programmable Occupied Periods Per Day (T701DFP-4 Only)—Reduce operating expenses by controlling the room based on occupant schedules.
  • Dual Setpoint with Adjustable Deadband—Provides comfort without sacrificing efficiency.
  • Manages 2- or 4-Pipe Systems—Enabling one thermostat to control all your fan coil unit needs.
  • Auto-Changeover for 2-Pipe Systems with Pipe Sensor—Minimizes seasonal maintenance.
  • Remote Sensor Ready—Supports outside temperature sensors or duct temperature sensors.
  • Dry Contact Equipped—Supports occupancy sensors or central time clocks.
  • Electric Heat Ready—Supports auxiliary or exclusive electric heating.
  • T701DFP-4 Seven Day Programmable Fan Coil Thermostat.

  • Backlit Display—Makes operation easy in the dark.
  • Configurable Display—Shows heating and cooling setpoints and room temperature simultaneously.
  • Temperature in °F or °C—Senses on your terms.
  •   Keypad Lockout—Enforces setpoint energy policies by preventing tampering with the digital room thermostat settings in public spaces.
  • Non-Volatile Memory—Retains program settings and setpoints during a power outage.


Resources

Digital Brochure

T701DFN-4 Non-Programmable and T701DFP-4 Seven Day Programmable Thermostat Catalog

View

Product Bulletin

T701DFN-4 Non-Programmable Thermostat Installation Instructions

View

Quick Start Guide

T701DFP-4 Seven Day Programmable Thermostat Installation Instructions

View

User Guide

T701DFN-4 Non-Programmable Thermostat Owner’s Manual

View

User Guide

T701DFP-4 Seven Day Programmable Thermostat Owner’s Manual

View
